E-Series Frame Tent
Aluminum Frame Tent Structures
Starting at $3728
Available Sizes: 10x10, 15x15, 20x20
Turnaround Time: 5 Days
Material: Aluminum frame; 18 oz. vinyl canopy
Warranty: Lifetime Frame Warranty; 7-year Canopy Warranty
E-Series frame tents at night for Premier League
Customizable Event Tent with a High Pitch Canopy for Greater Visibility
The E-Series frame tent system is an ideal fit when you require a customizable event structure that can be left in place for days or weeks at a time.

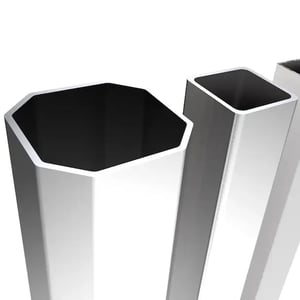

The all-aluminum framework is built for all types of weather and includes a full structural analysis report with certified wind ratings. The canopy top is fabricated using a heavy-duty 18 oz vinyl with hot-air-welded seams to create a waterproof seal.

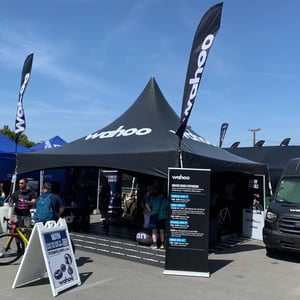

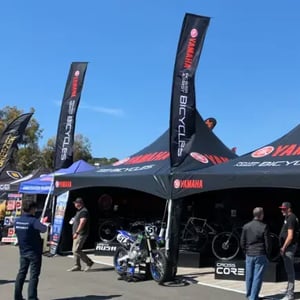

A floating center pole design is used to create both an unobstructed event space and a high-pitch canopy top—resulting in perfect positioning for your logo and branding. Accessories and add-ons range from custom printing, side walls, lighting, portable heating/cooling units and more.
Why Choose the E-Series Event Tent Framework?
All E-Series event tent models include a structural analysis report which includes wind ratings based on various scenarios (with walls, without walls, urban setting vs open terrain). For wind speed ratings to apply, proper ballasting must be used at each leg.
10x10 E-Series Wind Rating - up to 100 MPH
15x15 E-Series Wind Rating - up to 80 MPH
20x20 E-Series Wind Rating - up to 65 MPH

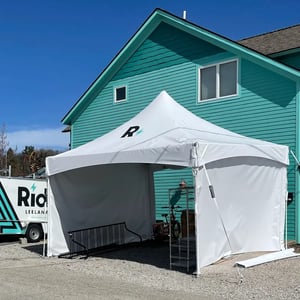

Structure Analysis & Wind Rating Resources
10x10 E-Series
Starting at $2,999
15x15 E-Series
Starting at $3,599
20x20 E-Series
Starting at $5,199
20x20 E-Series with Back Wall
Starting at $5,999
Heating & Cooling Solutions
2-in-1 portable heating & cooling solutions for enclosed outdoor event spaces. The portable heating & cooling solutions use a standard outlet for quick setup.

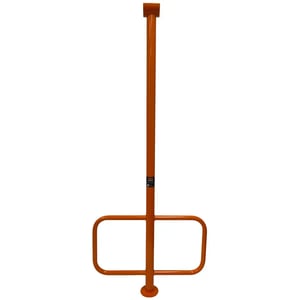

Frame Tent Lifting Jacks
This lightweight jack assists with lifting the frame to get the legs attached–eliminating the need to stand on a ladder. Breaks down into two pieces. Weighs 14 lbs.
Mobile Cigar Bar With MONARCHTENT
- E-Series Setup Video
- Installing Tensioning Straps
- Water Barrel Installation
- 10x10 Wind Rating
E-Series Setup Video
Watch a quick step-by-step installation video to learn how to properly set up the E-Series frame tent.
Installing Tensioning Straps

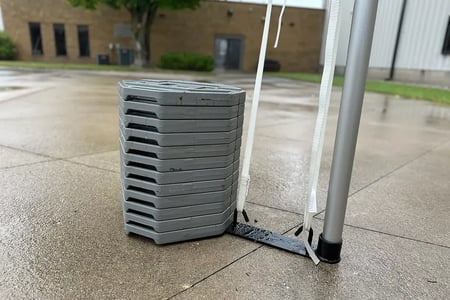

Water barrels provide up to 660 lbs of ballasting per frame tent leg, helping to achieve proper wind ratings and protect people and your investment.

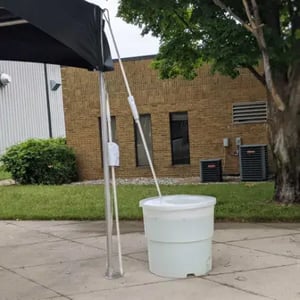

Water Barrel Installation
Water barrels provide up to 660 lbs of ballasting per frame tent leg, helping to achieve proper wind ratings and protect people and your investment.
10x10 Wind Rating
When properly ballasted, a 10x10 E-Series frame tent has a wind rating up to 100 mph

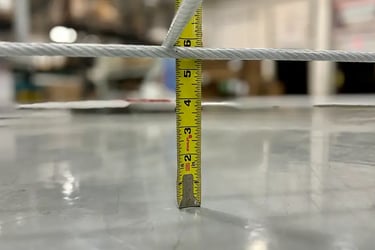

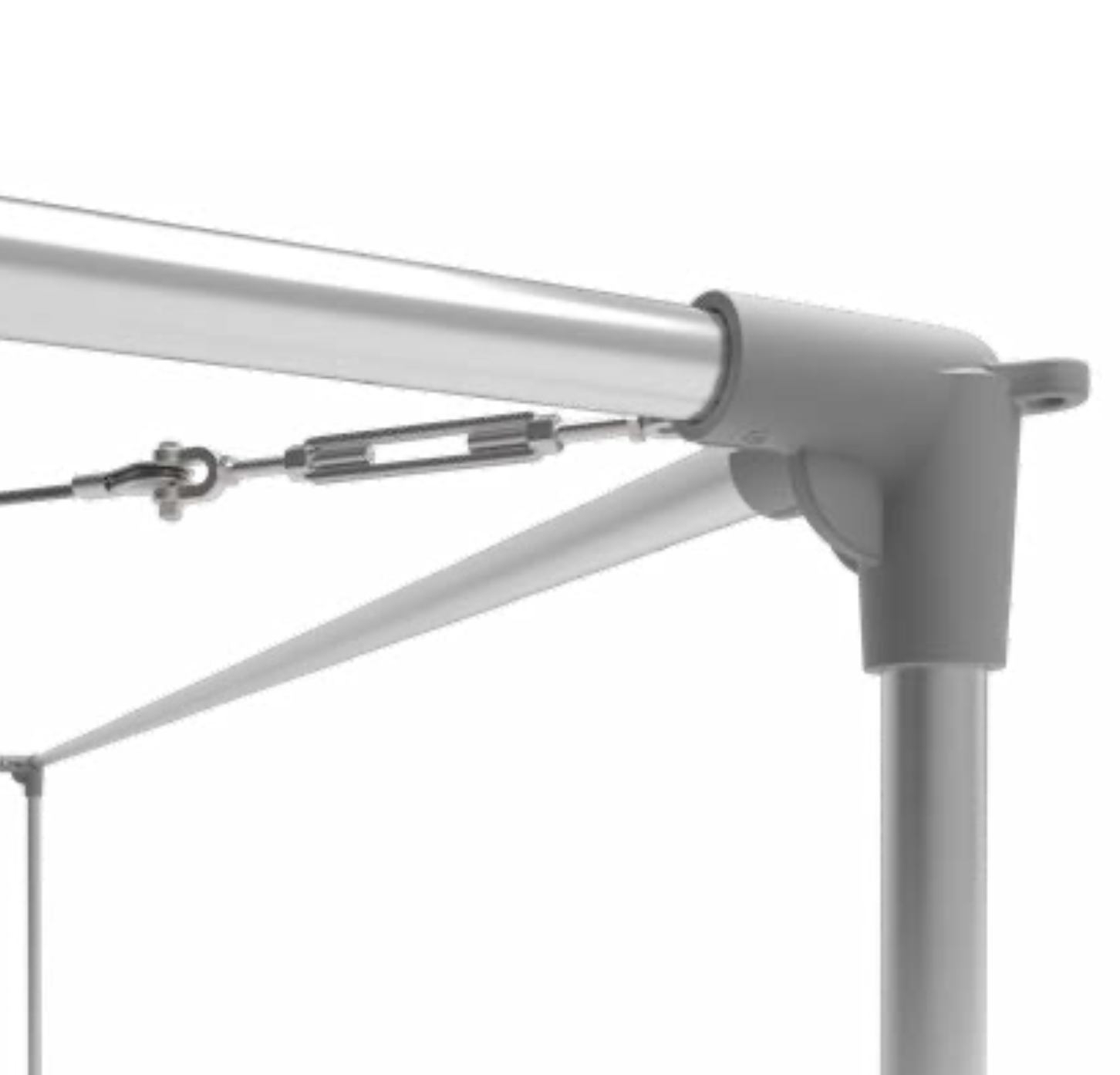

When tensioning the bottom cable should be between 5 ¼” to 5 ¾ ” off of the ground (in a level ground situation). Anything under 5 ¼” will cause the peak pole assembly to sag and can cause damage to your frame and canopy. Over-tensioning will cause the perimeter poles to bow in towards the center of the tent.

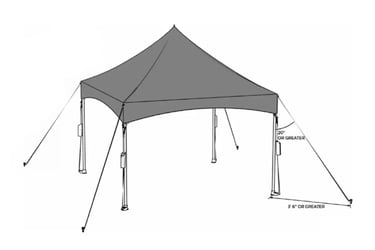

Drive the stake into the ground at least 3.6’ (or more) away from the hole in each foot (directly in line with the hole) and ratchet the strap until it is taut. Repeat this step for each of the corner legs.
Drive the stake straight into the ground, not at an angle.
